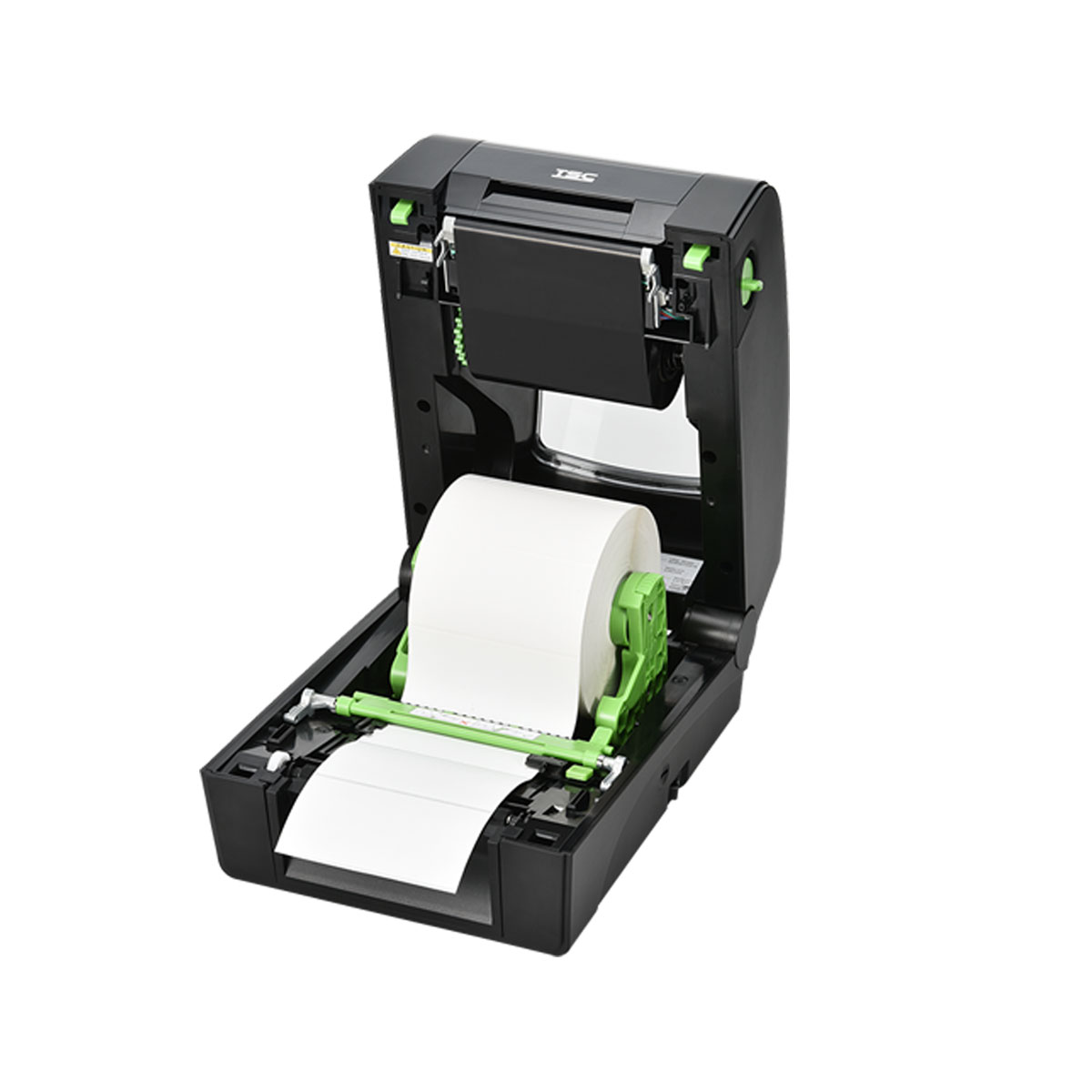

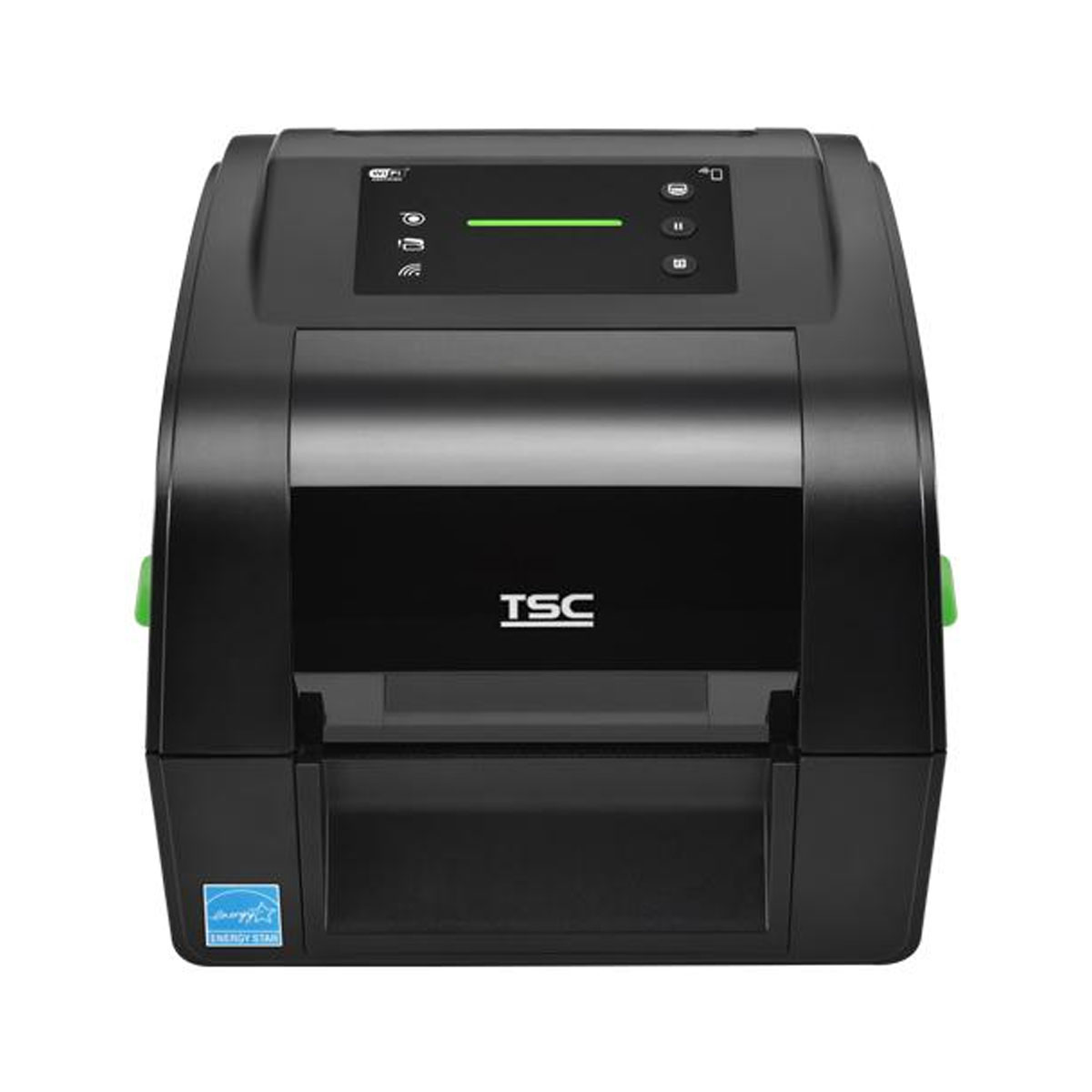

TSC TH 340 4-Inch Performance Desktop Printer

tcs-th-340-desttop-4-inch-ser-001
tcs-th-340-desttop-4-inch-ser-001
tcs-th-340-desttop-4-inch-ser-003
tcs-th-340-desttop-4-inch-ser-002

TSC TH 340 4-Inch Performance Desktop Printer

TDP Series 4-Inch Performance Desktop Printers

The 2-inch and 4-inch TH DH Series Desktop Barcode Printers are versatile and flexible for diverse printing requirements. This series’ versatility
enables printing a wide range of difficult labels, including thick, tiny, and long labels and certain types of vertical market labels

Our printer language emulation makes the TH DH Series plug-and-play. Its firmware automatically identifies major printer languages and begins
printing immediately without changing label templates. The TH DH Series minimises downtime during daily operations through comprehensive
printer management tools, printer shutdown prevention, and supports network security configurations to manage printers efficiently

The TH DH Series scales up applications with a wide media width, high-precision printing, and several addable future-proof options for diverse
barcode labels, receipts, wristbands, and UHF and HF RFID applications. This empowers businesses to adapt to changing requirements for
present and future operations. The printer minimises its environmental impact with 100% recyclable packaging and case, and over 90% of
its components are recyclable at end of life.

Functions

Title Here

Title Here

Title Here

Title Here

Title Here

Title Here

Applications

Tickets

Barcodes

2D Barcodes

Labels

Tags

Fanfold Paper

Download Catalog
Technical Inquiries
Product Purchase Inquiries

Key Benefits

Seamless Integration, Effortless Deployment
  • Out-of-the-box auto-switch print language emulation
  • User-friendly and convenient label printing with TSC Standalone Creator and TSCPRTGo
Minimising Downtime, Maximising Uptime
  • Real-time remote printer monitoring and management with the Internal Embedded Webpage, virtual control panel, TSC Console, and SOTI Connect
  • Downtime prevention with self-diagnostic TPH Care, TPH (thermal printhead) maintenance, and ribbon low warning
  • User-friendly design: self-diagnostics, toolless TPH and platen roller replacement for easy maintenance
  • Streamlined label setup with Save Labels feature in 6.5” OD printers, eliminating manual label alignment and feeding, while reducing waste
  • Supports network security configurations: HTTPS, SNMPv3, 802.1X, and TCP/IP Port 9100 filter
Versatile, Future-Proof Printing
  • 15mm to 120mm wide media width for diverse media types, optional narrow media adaptors support the narrow label width to 10mm
  • High-precision print quality with innovative label stabilising media damper and adjustments in vertical dpí, heater line, and TPH pressure
  • Future-proof upgrades: Wi-Fi, Bluetooth, cutter and peeler modules, care label cutter, linerless tear-off and linerless cutter kits, HF RFID upgrade kits and UHF RFID upgrade kits
  • UHF & HF RFID functionality: Encode During Print boosts efficiency, diverse label support, and auto calibration for easy setup
Environmentally Sustainable Printer
  • 100% recyclable packaging with FSC-compliant cartons
  • 100% recyclable plastic printer casing made with 30% recycled plastic
  • 90%+ of printer components are recyclable
Healthcare Tailored Design
  • Crisp white and bright full-colour scheme, perfectly suited for healthcare environments
  • Antimicrobial, easy-to-disinfect casing for effortless cleaning, vastly reducing the risk of contamination
  • Optional ribbon-cartridge design for hassle-and mess-free installation
  • IEC 60601-1 Medical-Grade Compliant Power Supply, ensuring safe and reliable use in healthcare facilities
Specifications

Brand: TSC
Model Name: TE 210
Resolution: 203 dpi (8 dots/mm)
Print Method: Direct thermal/Thermal transfer
Display: LED with buttons
Hardwire Connectivity: Ethernet
USB host
Serial RS-232
USB
Wireless Connectivity: Bluetooth, WiFi
Enterprise Printer Management: TSC Console
Type: Desktop
Max. Print Speed: Up to 6 ips (152 mm/s)
Max. Print Width: 4.25″ (108 mm)
Max. Print Length: 1000″ (24,400 mm)
RAM: 64 MB SDRAM
Flash: 128 MB
Optional Cutter: Guillotine cutter (full cut and partial cut)
Internal Label Capacity: 5″ (127 mm) OD
Max. Media Width: 0.8″ – 4.4″ (20 – 112 mm)
Media Type: Continuous; Die-Cut; Black Mark; Fan-Fold; Notch (Outside Wound)
Max. Ribbon Length: 300 Meters
Ribbon Width: 1.6″ – 4.3″ (40 – 110 mm)
Media Core Diameter: 1.0″ – 1.5″ (25.4 – 38.1 mm)
Construction: ABS plastic
Programming Languages: TSPL-EZD

Title Here
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry’s standard dummy
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Title Here
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry’s standard dummy
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Title Here

Lorem Ipsum is simply dummy text of the printing and typesetting industry.

  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry’s standard dummy
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.

Specifications

Resolution 203 dpi (8 dots/mm)
Print Method Direct thermal / Thermal transfer
Display LED with buttons
Hardwire Connectivity USB
Enterprise Printer Management TSC Console
Type Desktop
Max. Print Speed Up to 6 ips (152mm/s)
Max. Print Width 4.25″ (108mm)
Max. Print Length 1,000″ (25,400mm)
RAM 64 MB DRAM
Flash 16 MB
Optional Cutter Guillotine cutter (full cut)
